Epoxy Coating: What It Is, Types & Where to Use It
Updated 16 October 2026
Epoxy turns up on garage floors, boat hulls, steel beams, kitchen worktops and glossy bar tops, and in every case it is doing broadly the same job: forming a hard, chemically bonded skin that protects whatever is underneath. An epoxy coating is simply a two-component resin system applied as a film rather than poured as a casting. Understanding what makes one product a thin floor primer and another a thick, self-levelling table finish helps you pick the right material, apply it at the right thickness and avoid the classic failures of peeling, blushing and yellowing.
Most homeowners first meet this topic through floors, so our epoxy floor hub is the best starting point if concrete is your project. This guide takes a wider view across floors, metal, wood and furniture.
What is an epoxy coating?
Every system combines a resin (Part A) with a hardener (Part B). Once mixed, the two react and cross-link into a rigid thermoset plastic that cannot be re-melted. Applied as a film, the result is:
- Strongly adhesive to properly prepared concrete, steel, timber and many existing finishes.
- Hard and abrasion-resistant, which is why it is used under car tyres and forklift traffic.
- Chemical- and water-resistant, shrugging off oil, many solvents and household spills.
- Build-able: it can go on as a thin sealer or as a thick flood coat several millimetres deep.
The weakness is sunlight. Most epoxies chalk or yellow under UV over time, which is why outdoor and light-coloured work often gets a UV-stable top coat, or uses a UV-resistant epoxy resin formulated to slow the yellowing.
Main types of epoxy coatings
Products are grouped by how much of the tin actually ends up as cured film (the “solids” content) and by what carries the resin.
| Type | Typical film per coat | Where it is used | Notes |
|---|---|---|---|
| Water-based | Thin, around 0.05–0.1 mm dry | DIY garage and basement floors, walls | Low odour, easy clean-up, less durable |
| Solvent-based | Thin to medium | Primers, metal protection, damp-tolerant primers | Good penetration; strong fumes, needs real ventilation |
| 100% solids | 0.25 mm and upwards | Heavy-duty floors, commercial units | Toughest film, short working time, strong smell during cure |
| Self-levelling / flood coat | 1–3 mm per pour | Tabletops, bar tops, art | Low viscosity, high gloss, bubbles easily released |
| Epoxy paint (pigmented) | Thin | Floors, workshops, tanks | Coloured, sometimes a hybrid with acrylic |
If you are weighing up a pigmented product, our guide to epoxy paint explains how it differs from a true multi-coat resin system.
Where to use it: floors, metal, wood and tables

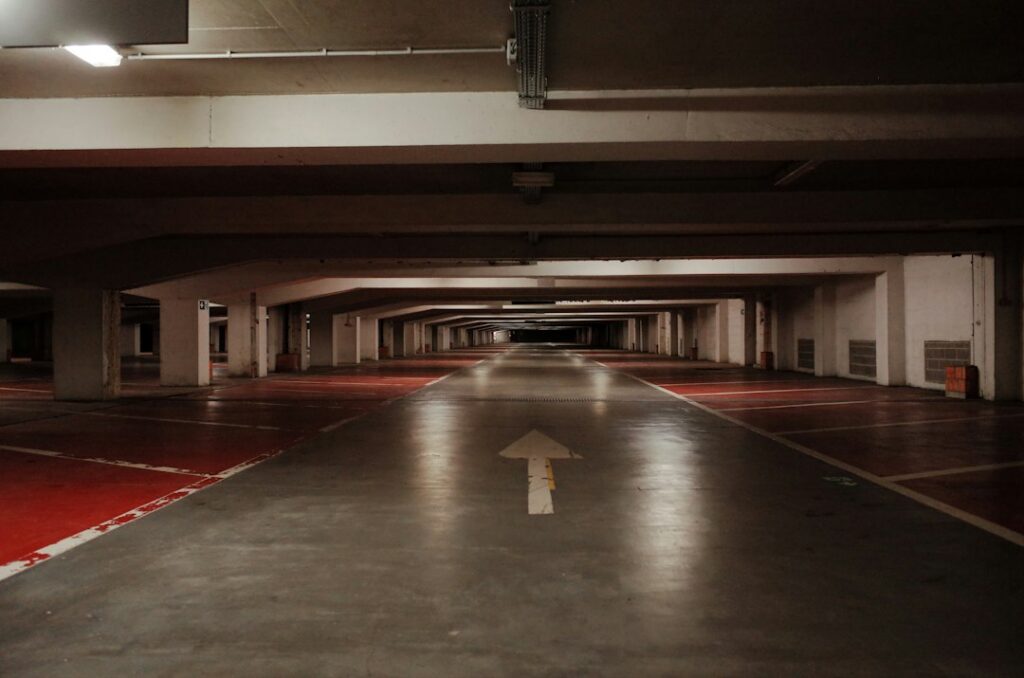

Concrete floors
This is the biggest use. A typical domestic system is a primer, one or two pigmented base coats (often broadcast with decorative flakes), then a clear epoxy top coat or a polyurethane top coat for scratch and UV resistance. Garages are the classic case, covered step by step in our epoxy garage floor guide. For bare slabs the surface preparation matters more than the product, and our concrete epoxy article walks through grinding, etching and moisture testing.
Metal
Epoxy primers are standard on structural steel, boat trailers and machinery because they seal out moisture and resist corrosion. On metal the surface must be degreased and abraded, ideally blasted, then primed promptly before flash rust forms.
Wood
Thin, penetrating epoxy seals timber, stabilises soft grain and makes a superb base for varnish. See epoxy sealer for wood for how to thin and apply a seal coat that stops air bubbles rising out of the grain later.
Tables and bar tops
For furniture, a clear coat epoxy is poured as a self-levelling flood coat roughly 3 mm thick, giving the deep, glass-like finish associated with river and live edge tables. Our table top epoxy guide covers product choice for this kind of work.
Build thickness and coverage
Coverage depends on film thickness. A useful rule of thumb is that one litre spread over one square metre gives a wet film of 1 mm. From that you can estimate:
- Thin roller coat (0.1–0.15 mm): typically 6–10 m² per litre, depending on surface porosity.
- Floor base coat at 0.25 mm: roughly 4 m² per litre.
- Table flood coat at 3 mm: about 3 litres per m².
Porous concrete and open-grained timber soak up much more on the first coat, so always allow 10–20% extra. Applying too thickly in one go is a common mistake: thin systems can wrinkle, and fast floor epoxies can overheat in the tray and cure before you have rolled them out.
Top coats and clear coats
The final layer does the heavy lifting against scratches, chemicals and sunlight. Options include:
- Clear epoxy: excellent build and gloss, but will amber with UV over time.
- Polyurethane or polyaspartic: thinner but more scratch- and UV-resistant; widely used over floor base coats.
- Anti-slip additive: fine aggregate stirred into or broadcast onto the top coat for wet areas and ramps.
Recoat windows matter. Most epoxies can be overcoated without sanding within a manufacturer-stated window (often around 12–24 hours). Miss it and you need to key the surface with an abrasive pad or 120–180 grit paper so the next coat bonds mechanically.
How to apply: a step-by-step overview
- Test for moisture. Tape a square of polythene to concrete for 24 hours; condensation underneath means you need a moisture-tolerant primer or should not proceed.
- Prepare the surface. Grind or etch concrete, abrade metal and wood, then vacuum and wipe down. Remove all oil and silicone.
- Check conditions. Most systems want 15–25°C air and surface temperature, and the surface at least 3°C above the dew point to avoid amine blush.
- Mix accurately. Measure by the stated ratio, mix for two to three minutes scraping sides and base, then decant into a clean tray.
- Apply. Cut in edges with a brush, then roll in sections, keeping a wet edge. Use spiked shoes on floors if broadcasting flakes.
- Cure. Light foot traffic is typically allowed after 24 hours, vehicles after 3–7 days, and full chemical resistance takes around a week.
Safety and ventilation
Uncured resin and hardener are skin sensitisers, and repeated contact can cause lasting allergic dermatitis. Wear nitrile gloves and eye protection, keep skin covered, and ventilate well. For floor work, especially solvent-based or 100% solids systems in enclosed garages and basements, wear a respirator with organic vapour cartridges and keep children and pets away until cured. The Health and Safety Authority’s epoxy resins information sheet sets out the health effects and the controls professionals are expected to use.
Common mistakes to avoid
- Skipping preparation: coating over smooth, dusty or contaminated surfaces is the number-one cause of peeling.
- Ignoring the cold: below about 10°C most systems cure slowly, stay tacky or blush.
- Wrong ratio: adding “a bit extra hardener” does not speed things up; it leaves a soft, weak film.
- Choosing the wrong grade: a hobby flood-coat resin is not designed for car tyres, and a floor product will not self-level on a table. Our comparison of industrial and residential epoxy flooring explains how grades differ.
If you want more background on resin chemistry, hardeners and how curing works, Wikipedia’s article on epoxy is a solid technical overview.
Maintenance and lifespan
A well-prepared domestic floor system typically lasts several years, and longer with a polyurethane top coat. Sweep grit regularly, clean with a pH-neutral cleaner and a soft mop, and avoid harsh solvents. Worn traffic lanes can usually be abraded and recoated without stripping the whole floor. On tables, use coasters and mats for hot pans, and buff out light scratches with a polishing compound.
Watch it being made
See one of our tables come together in the workshop: a nebula resin top with fibre optic stars, from the first pour to the lights going on.
Resin art nebula resin table with fibre optic art. More builds on the Go Bespoke YouTube channel.
Frequently asked questions
How thick should an epoxy coating be?
It depends on the job. Floor base coats are typically 0.15–0.3 mm per coat, metal primers thinner still, while table flood coats are usually around 3 mm. Follow the product’s stated maximum per coat.
What is the difference between an epoxy top coat and a clear coat?
The terms overlap. A clear coat is any transparent final layer; it may be epoxy, polyurethane or polyaspartic. Epoxy gives more build and gloss, while polyurethane gives better UV and scratch resistance.
Can you put epoxy resin coatings over paint?
Only over sound, well-bonded paint that has been degreased and sanded. Loose or flaking paint must be removed, and some single-pack paints can lift under epoxy, so test a small area first.
How long does it take to cure?
Typically touch-dry in 6–12 hours, light use after 24 hours and full cure in about 7 days at 20°C. Cooler rooms extend all of these times.
Is clear epoxy coating suitable outdoors?
Standard epoxy yellows and chalks in sunlight. Outdoors, use it as a base under a UV-stable polyurethane or polyaspartic top coat.
